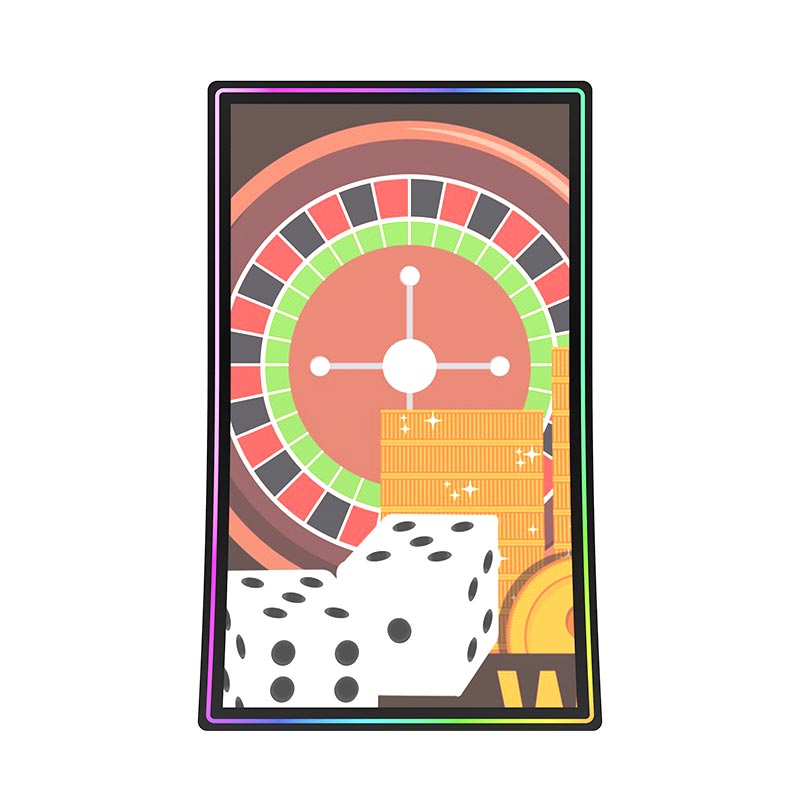

49inch J-Curved Touch Screen for Curved Gaming and Casino Monitors：
Precise 10-point PCAP multi-touch technology, 49-inch touch display with J-format, 4K UHD touch monitor for more impressive visual content and engaging games. Stylish appearance, attractive visual effects and accurate PCAP multi-touch experience immerse excited players in the game atmosphere and enjoyment. It is an ideal touch solution for a wide range of applications in gaming, casino and sports betting.
Packaging: Carton and wooden box packaging, packaging according to product size, other packaging details according to customer needs
| Product Name | 49″ J-curved Capacitive Touchscreen Display Terminal | |
| Size | 49’’ | |
| LCD Panel | Display Area | 1085.5（H）×617.7（V）mm |
| Aspect Ratio | 16:9 | |
| Backlight | LED | |
| Backlight Lifespan | Over 50,000 hours | |
| Resolution | 3840×2160 | |
| Brightness | 300cd/㎡ | |
| Contrast Ratio | 1300：1 | |
| Response Time | 8ms | |
| Dot Dimensions | 0.279（H）×0.279（V）mm | |
| Color Count | 16.7M | |
| Viewing Angles | Horizontal/Vertical: 178°/178° | |
| Capacitive Screen | Touch Solution | Projected G+FF Capacitive Touch Technology |
| Response Time | <5ms | |
| Touch Points | Standard 10-point touch (enabling image zooming, etc.) | |
| Effective Touch Recognition | >1.5mm | |
| Scanning Frequency | 200Hz | |
| Scanning Accuracy | 4096 x 4096 | |
| Communication Method | Full-speed USB2.0，USB3.0 | |
| Theoretical Click Count | Over 50 million | |
| Operating Current/Voltage | 180mA/DC + 5V +/- 5% | |
| Anti-light interference | Normal operation under strong light changes such as sunlight, incandescent lamps, and fluorescent lamps | |
| Touch Data Output Method | Coordinate output | |
| Surface Hardness | Physically tempered, Mohs 7 explosion-proof glass | |
| Operating System Compatibility | Android/Windows | |
| Driver | Driver-free, plug and play | |
| External Interfaces | HDMI Input | 3 |
| DP Input | 1 | |
| Touch USB Input | 1 | |
| Headphone Output | 1 | |
| AC Power Supply | 1 | |
| Power Supply | Operating Voltage | AC220V 50/60Hz |
| Maximum Power Consumption | 165W | |
| Standby Power Consumption | 1W | |
| Operating Environment | Temperature | 0～40 ℃ |
| Humidity | 10～90%RH, non-condensing | |
| Appearance Information | Product Dimensions | 1166.49*713.4*206.74mm |
| Carton Dimensions | TBD | |
| Net Weight | TBD | |
| Gross Weight | TBD | |
| Accessories | Power cord*1, HDMI cable*1, Touch USB cable*1, Remote control *1 | |
