23.6″ Round LCD Screen Monitor Digital Signage Advertising LCD Screen Features:
1. 23.6-inch circular LCD display supports Android 11.0 operating system;
2. Support multiple languages;
3.1500 high-definition brightness, 23.6-inch circular LCD digital advertising display can be used both indoors and outdoors;
4. Support 10/1000M Internet, 2.4G WIFI connection, BT 4.0
5. Shell material metal sheet metal structure design
LCD Spec
| Size | 23.6″LCD Panel |
| Active area | 599.424(W) *599.424(V)mm |
| Resolution | 1280*1280(RGB) |
| Brightness | 1500cd/㎡ (Typ.) |
| Contrast ratio | ‘1000:1 (Typ.) (TM) |
| Display color | 16.7M , 72% NTSC |
| Backlight | WLED |
| Viewing angles | 89/89/89/89 (Typ.)(CR≥10) |
| Response time | 14 (Typ.)(G to G) ms |
| Frequency | 60Hz |
| Lifespan | ≥50000 hours |
Motherboard Spec
| CPU | Rockchip RK3568 Quad core ARM Cotex-A55 2.0Ghz |
| RAM | 2G DDR4 |
| ROM | 16G EMMC(16G/32G EMMC for optional可选) |
| Memory extension | TF Card extension with the highest support for 128GB |
| System | Android 11.0 |
| Intetnet | Support 10/1000M Internet，2.4G WIFI connection，BT 4.0 |
| RTC real time clock | Support timing on / off function |

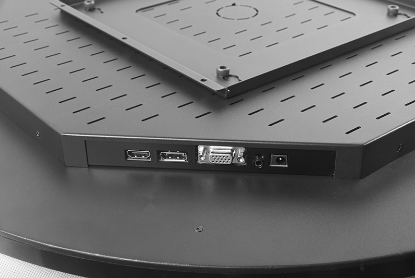

| Interfaces | 1*TF card slot/ 1* RJ45*1/ 1*HDMI out/ 2*USB3.0/1*Ear+Mic |
Display Spec
| Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤120W |
| Outline Dimensions | 657*657*55mm |
| Installation | Mounting bracket |
| material | Sheet Metal materials |
| N.W. | ≤9.1KG |
| VESA | 200*200mm |
Environment
| Storage Environment | Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa |
| Working Environment | Temperature：0℃～50℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa |
Packing list
| Power Cable | 1pc |
| Display | 1pc |
Certifications
| CE | YES（Issued by SGS） |
| RoHS | YES（Issued by SGS） |
| REACH | YES（Issued by SGS） |
| FCC ID | YES（Issued by SGS） |
