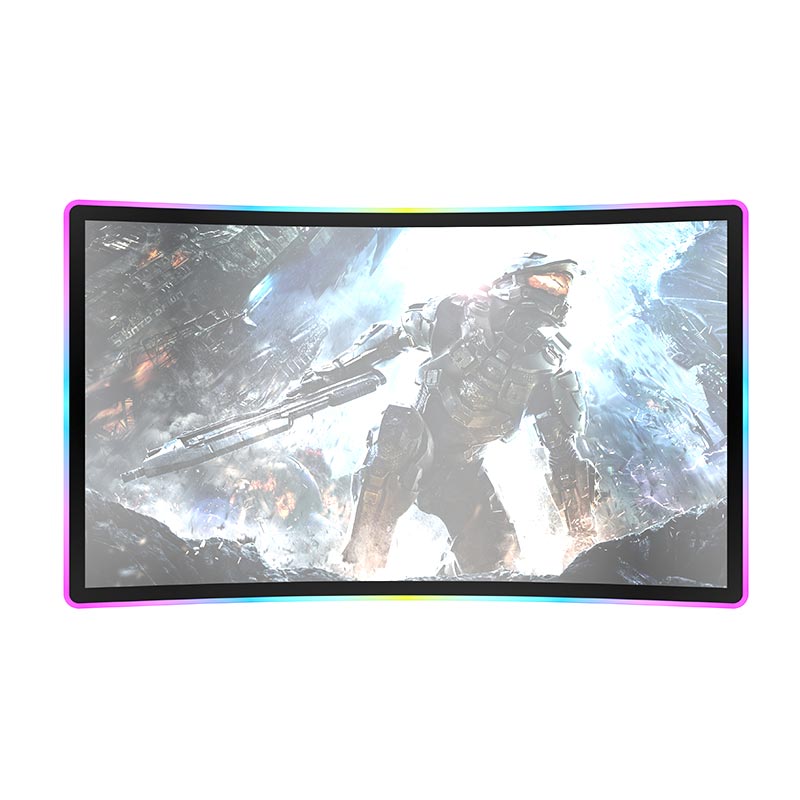

43inch C Curved Product Introduction :
1. Landscape or portrait mode use and standard aspect ratio, standard widescreen (16:9) 3840 x 2160
2. Low power consumption LED backlight
3. Ranger screen panorama effect
4. Customized frame design upon request → open, closed frame
5. Signal input source: HDMI 2.0 x 2 ports, DP 1.2 x 2 ports
Packaging: Carton and wooden box packaging, packaging according to product size, other packaging details according to customer needs
| Product Name |
43 Inch C Curved Touch Display with LED-edge |
|
| Model |
43” |
|
| LCD Panel | Display Area | 963.6（H）×557.9（V）mm |
| Zoom | 16：9 | |
| Backlight | LED | |
| Backlight Life | ≥50000 hours | |
| Resolution | 3840×2160，（1920×1080 Optional） | |
| Brightness | 300cd/㎡ | |
| Contrast | 1300：1 | |
| Response Time | 8ms | |
| Point Moment | 0.2451（H）×0.2451（V）mm | |
| Color | 16.7M | |
| Viewing Angle | Horizontal /Vertical：178°/178° | |
| Capacitive Screen Parameter |
Touch Scheme | Projected G+FF capacitive touch technology |
| Response Time | <5ms | |
| Touch Points | Standard 10-point touch (can realize zooming in and out of pictures, etc.) | |
| Touch Effective Identification | >1.5mm | |
| Scanning Frequency | 200HZ | |
| Scanning Accuracy | 4096 x 4096 | |
| Way of Communication | Full speed USB2.0, USB3.0 | |
| Theoretical Clicks | ≥5000 | |
| Current/Voltage | 180Ma/DC+5V+/-5% | |
| Anti-light Interference | It is normal when strong light such as sunlight, incandescent lamps, and fluorescent lamps changes | |
| Touch Data Output Method | Coordinate output | |
| Surface Hardness | Physical tempered, Mohs 7 explosion-proof glass | |
| OS Compatibility | Android system/Windows system | |
| Drive | Drive-free, plug and play | |
| External Interface | 4K Display External Interface | HDMI1.4 input*1, HDMI2.0 input*1, touch USB*1, headphone output*1, DP input*1 |
| 2K Display External Interface | HDMI1.4 input*1, DVI input*1, VGA input*1, headphone output*1, touch USB*1 | |
| AC Power | one | |
| Power Supply | Operating Voltage | AC100V-240V 50/60Hz |
| Maximum Power Consumption | 135W | |
| Standby Power Consumption | 0.8W | |
| use Environment | Temperature | 0～40℃ |
| humidity | 10～90%RH without condensation | |
| Appearance Information | Product Size | 1008.1*595*129.34mm |
| Net Weight | 1100*705*245mm | |
| Gross Weight | 23.95KG | |
| Appendix | 26.8KG | |
| Appearance Information | Product Size | Power cord*1, HDMI cable*1, touch USB cable*1, remote control*1 |
