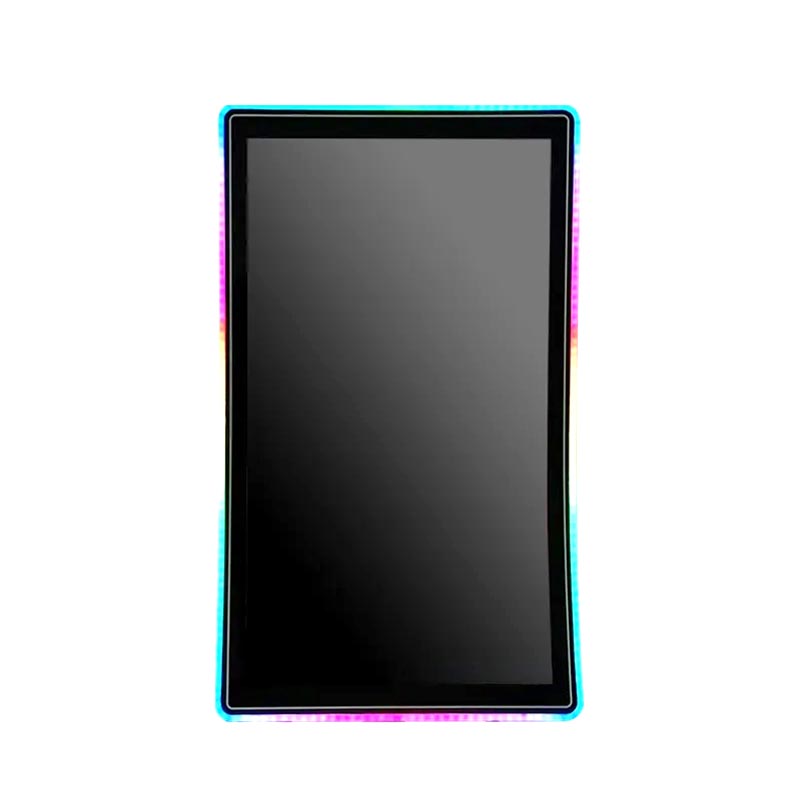

43″ J Curved Touch Monitor Features:
1. Use in portrait or landscape orientation
2.16:9 standard aspect ratio, standard widescreen
3. Low power consumption led backlight
4. Game screen, sports betting panorama experience effect
5. The game display image distortion is minimal
6.400-800 high brightness
7. Signal input source: HDMI 2.0 x 2 port, DP 1.2 x 2 port
8. Touch or non-touch safety glass P-CAP, tempered glass (optional)
Packaging: Carton and wooden box packaging, packaging according to product size, other packaging details according to customer needs
| Product Name | 43″ J-curved Gaming Touch Screen with LED-edge | |
| Size | 43’’ | |
| LCD Panel | Display Area | 963.6（H）× 557.9（V）mm |
| Aspect Ratio | 16:9 | |
| Backlight | LED | |
| Backlight Lifespan | Over 50,000 hours | |
| Resolution | 3840×2160 | |
| Brightness | 300cd/㎡ | |
| Contrast Ratio | 1300：1 | |
| Response Time | 8ms | |
| Dot Dimensions | 0.2451（H）×0.2451（V）mm | |
| Color Count | 16.7M | |
| Viewing Angles | Horizontal/Vertical: 178°/178° | |
| Capacitive Screen | Touch Solution | Projected G+FF Capacitive Touch Technology |
| Response Time | <5ms | |
| Touch Points | Standard 10-point touch (enabling image zooming, etc.) | |
| Effective Touch Recognition | >1.5mm | |
| Scanning Frequency | 200Hz | |
| Scanning Accuracy | 4096 x 4096 | |
| Communication Method | Full-speed USB2.0，USB3.0 | |
| Theoretical Click Count | Over 50 million | |
| Operating Current/Voltage | 180mA/DC+5V+/-5% | |
| Anti-light interference | Normal operation under strong light changes such as sunlight, incandescent lamps, and fluorescent lamps | |
| Touch Data Output Method | Coordinate output | |
| Surface Hardness | Physically tempered, Mohs 7 explosion-proof glass | |
| Operating System Compatibility | Android/Windows | |
| Driver | Driver-free, plug and play | |
| External Interfaces | HDMI1.4 Input | 1 |
| DP Input | 1 | |
| Touch USB Input | 1 | |
| Headphone Output | 1 | |
| AC Power Supply | 1 | |
| Lighting control interface | RS232 *1 | |
| Power Supply | Operating Voltage | AC220V 50/60Hz |
| Maximum Power Consumption | 135W | |
| Standby Power Consumption | 0.8W | |
| Operating Environment | Temperature | 0～40 ℃ |
| Humidity | 10～90%RH, non-condensing | |
| Appearance Information | Product Dimensions | 1020.31*618*62.8mm |
| Carton Dimensions | 1100*705*245mm | |
| Net Weight | 23.95KG | |
| Gross Weight | 26.8KG | |
| Accessories | Power cord*1, HDMI cable*1, Touch USB cable*1, Remote control *1 | |
