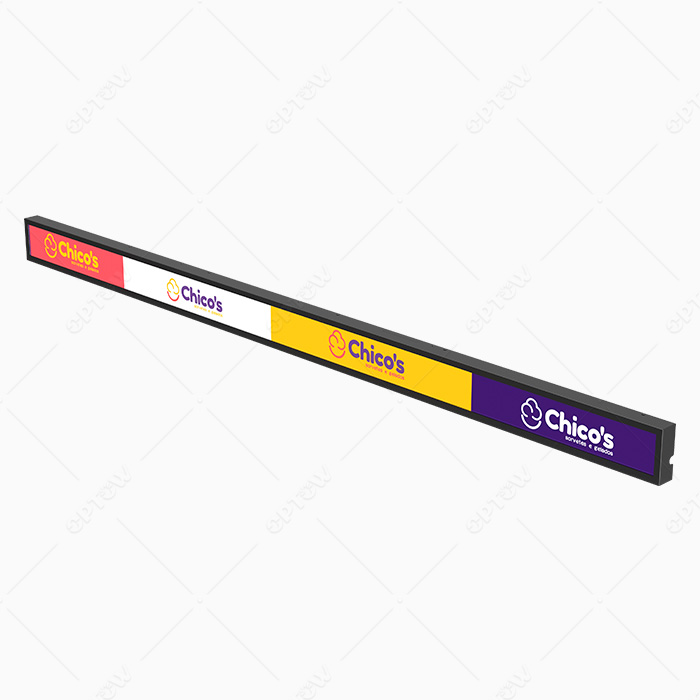

47.1inch Digital Shelf Bar Screen 500 Nits, Ultra-wide Stretched Monitor Display:
1. The operating system supports Android 9.0 and can be connected to Wi-Fi for operation
2. IPS technology, 4K ultra-high-definition video, picture, pdf playback.
3. Use anytime, 1*TF card slot/ 1* micro-USB(OTG)/ 2*Type-c(DC 12v)/ 1*USB
Packaging: Carton and wooden box packaging, packaging according to product size, other packaging details according to customer needs
LCD Spec
| Size | 47.1″LCD Panel |
| Active area | 1196.16(H) ×49.84(V)mm |
| Resolution | 3840×160(RGB) 76PPI |
| Brightness | 500cd/㎡ (Typ.) |
| Contrast ratio | ‘1000:1 (Typ.) (TM) |
| Display color | 1.07B , 72% NTSC |
| Backlight | WLED |
| Viewing angles | 89/89/89/89 (Typ.)(CR≥10) |
| Response time | 8 (Typ.)(G to G) ms |
| Frequency | 60Hz |
| Lifespan | ≥50000 hours |
Motherboard Spec
| CPU | T972 Quad core ARM Cortex-A55 |
| RAM | 2G DDR3(1 G/2G for optional ) |
| ROM | 8G EMMC(8G/16G/32G/64GEMMC for optional可选) |
| Memory extension | TF Card extension with the highest support for 128GB |
| System | Android 9.0 |
| Intetnet | Support 2.4G WIFI connection |
| RTC real time clock | Support timing on / off function |

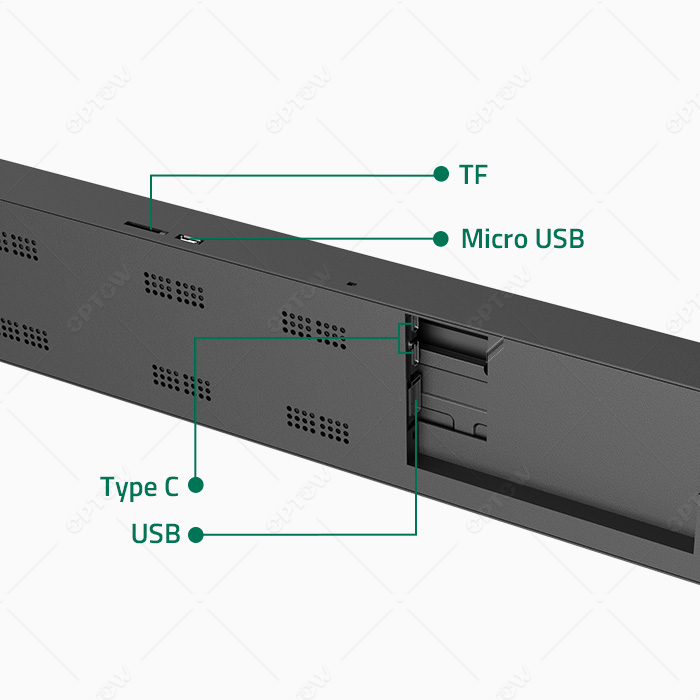

| Interfaces | 1*TF card slot/ 1* micro-USB(OTG)/ 2*Type-c(DC 12v)/ 1*USB |
Display Spec
| Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤33W |
| Outline Dimensions | 977*70*21mm |
| Installation | Mounting bracket |
| material | Sheet Metal materials |
| N.W. | ≤2KG |
| Surface treatment | Black metal paint |
Environment
| Storage Environment | Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa |
| Working Environment | Temperature：0℃～50℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa |
Packing list
| Display | 1pc |
| Cable | 1pc（OTG cable，micro USB to USB 2.0） |
| Adapeter | 1pc (12V-2A) |
| Bracket | 1pc |
Certifications
| CE | YES（Issued by SGS） |
| RoHS | YES（Issued by SGS） |
| REACH | YES（Issued by SGS） |
| FCC ID | YES（Issued by SGS） |
